72 11 033 Removing and installing/replacing front left or right seat belt

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Installation:

Powerlok screws (Duo Taptite) must be replaced and must not be reused
Powerlok screws (Duo Taptite) are mechanical thread fasteners with trilobular threads

Release screw (1).

Tightening torque 72 11 04AZ .

Fig 1: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

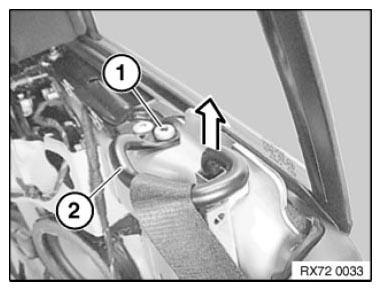

Release screw (1) and remove deflection bar (2) towards top.

Tightening torque 72 11 10AZ .

Fig 2: Removing Deflection Bar Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 72 11 02AZ .

Remove inertia reel mechanism (2).

Installation:

Coding (3) of inertia reel mechanism must be seated in opening of body.

Fig 3: Identifying Screw, Inertia Reel Mechanism And Inertia Reel Mechanism Coding

Courtesy of BMW OF NORTH AMERICA, INC.
