63 31 185 Replacing LED for side trim panel light

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Feed out cable (1).

Detach LED for side trim panel light (2) in direction of arrow from optical fibre (3).

Installation:

LED for side trim panel light (2) must be felt to snap into place in optical fibre (3).

Make sure cable (1) correctly laid.

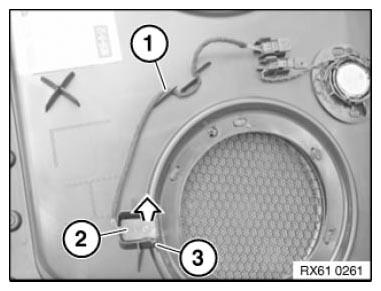

Fig 1: Disconnecting LED For Side Trim Panel Light From Optical Fibre

Courtesy of BMW OF NORTH AMERICA, INC.
