52 26... Replacing rubber buffers

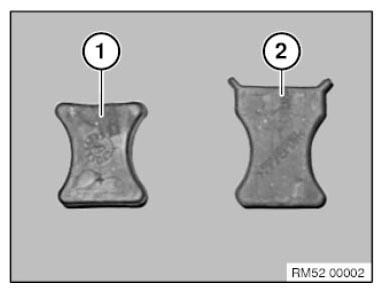

Existing rubber buffers (1) must be replaced with new rubber buffers (2).

Fig 1: Identifying Rubber Buffers

Courtesy of BMW OF NORTH AMERICA, INC.

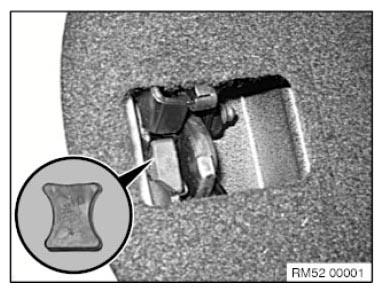

Existing rubber buffer in actuator unit.

Fig 2: Locating Rubber Buffer Position

Courtesy of BMW OF NORTH AMERICA, INC.

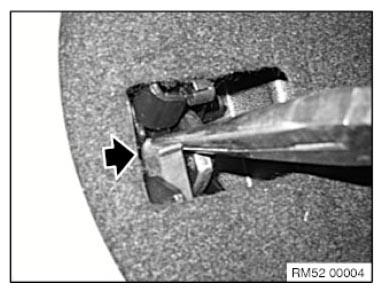

Pull out rubber buffers using pliers.

Fig 3: Pulling Out Rubber Buffers Using Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

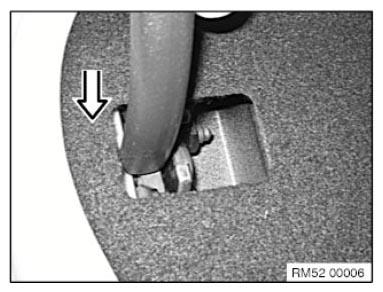

Insert new rubber buffer in actuator unit.

Fig 4: Inserting Rubber Buffer In Actuator Unit

Courtesy of BMW OF NORTH AMERICA, INC.

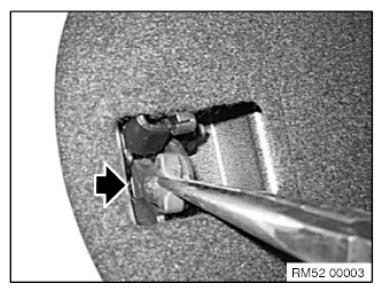

Press in rubber buffer firmly.

Fig 5: Pressing Rubber Buffer

Courtesy of BMW OF NORTH AMERICA, INC.

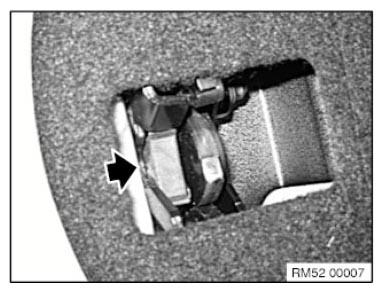

Check that rubber buffer is correctly fitted.

Fig 6: Locating Rubber Buffer Position

Courtesy of BMW OF NORTH AMERICA, INC.
