51 24 095 Removing and installing/replacing emergency release for rear lid

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

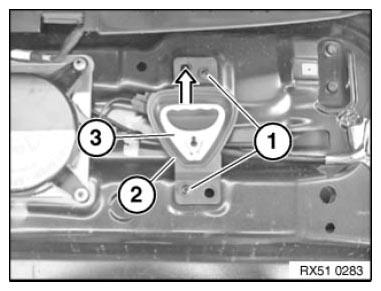

Release screws (1) on emergency release (2).

Feed out handle (3) on emergency release (2) towards top.

Fig 1: Removing Handle On Emergency Release

Courtesy of BMW OF NORTH AMERICA, INC.

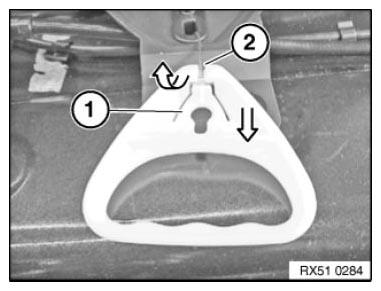

Press emergency release tab (1) downwards and feed out Bowden cable (2) in direction of arrow.

Fig 2: Removing Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

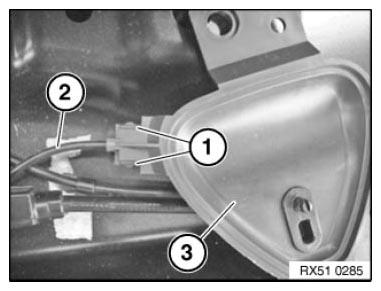

Press catches (1) on Bowden cable (2) together and remove emergency release (3).

Fig 3: Identifying Emergency Release And Catches On Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Perform function check with rear lid open.

Replacement:

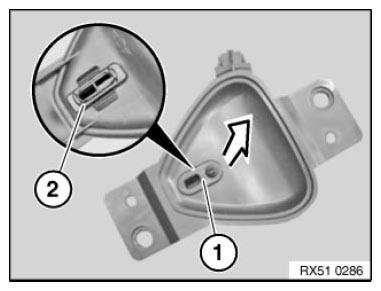

If necessary, detach clip upper section (1) from clip lower section (2) towards top.

Installation:

Catches on clip upper section (1) and on clip lower section (2) must not be damaged.

Fig 4: Disconnecting Clip Upper And Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.
