51 24 090 Removing and installing/replacing left or right rear lid lock

WARNING: This page is about a different variant/trim than selected.

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Necessary preliminary tasks:

Unscrew nuts (1).

Installation:

Tightening torque 51 24 12AZ .

Turn drive unit for rear lid lock (2) upwards.

Installation:

Make sure drive unit for rear lid lock (2) is correctly seated.

Fig 1: Identifying Rear Lid Lock And Mounting Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Feed out thief proofing cover (2) in direction of arrow from guide (3).

Fig 2: Removing Proofing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detach Bowden cable (2) from lock reversing lever. Then lever out guide (1) for Bowden cable on counter support in direction of arrow.

Installation:

Retaining tabs and guide on Bowden cable (2) must not be damaged.

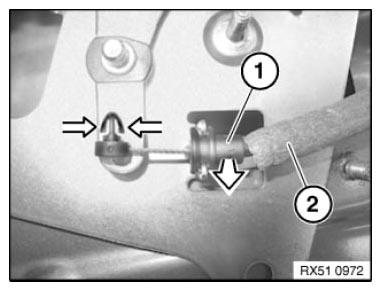

Fig 3: Removing Guide For Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable connector (1) on plug connection (2) on left or Bowden cable (3) on right.

Installation:

Replace cable connector (1).

Left side only:

Disconnect plug connection (2).

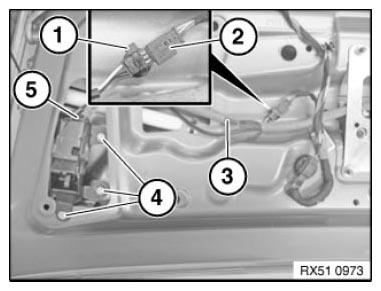

Fig 4: Identifying Cable Connector, Bowden Cable And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (4) on rear lid lock (5) and feed out rear lid lock including Bowden cable.

Installation:

Tightening torque 51 24 3AZ .

Installation:

Perform function check with rear lid open.
