51 24 080 Removing and installing/replacing drive unit for rear lid lock

Necessary preliminary tasks:

• Remove PANEL FOR REAR LID

Unscrew nuts (1).

Tightening torque 51 24 12AZ .

Turn drive unit for rear lid lock (2) upwards.

Installation:

Make sure drive unit for rear lid lock (2) is correctly seated.

Fig 1: Identifying Rear Lid Lock And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Feed out thief proofing cover (2) in direction of arrow from guide (3).

Fig 2: Removing Proofing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

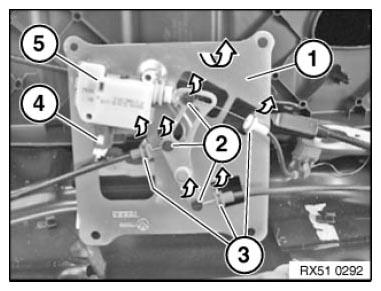

Unclip clips (2) and guides of Bowden cables (3) downwards.

Detach plug connection (4) from actuator drive (5).

Remove drive unit for rear lid lock (1).

Fig 3: Opening Clips And Guides Of Bowden Cables Downwards

Courtesy of BMW OF NORTH AMERICA, INC.
