51 46 080 Removing and installing/replacing upper rollover protection panel

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: Tape off work area in order to avoid damage.

Unclip upper trim (1) with plastic wedge.

Installation:

Retaining lugs must not be damaged nor must trim (1) be scratched.

If necessary, replace trim (1).

Trim (1) is encoded against incorrect installation.

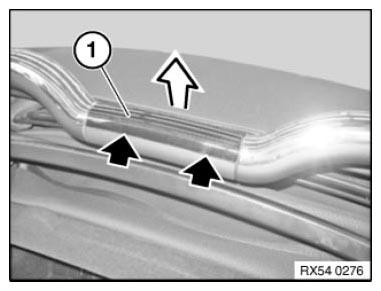

Fig 1: Removing Upper Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

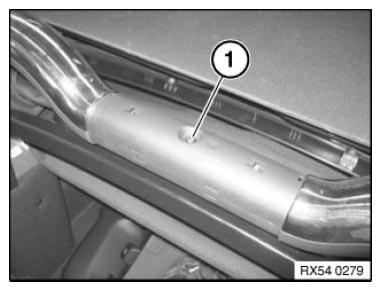

Fig 2: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully unclip upper panel from lower panel and remove in upward direction.

NOTE: There are also retaining clips in the panel on the left and right.

Installation:

Retaining lugs on lower or upper trim must not be damaged.

If necessary, replace faulty covers.

Retaining clips on left and right must not be damaged.

Fig 3: Removing Lower Panel From Upper One

Courtesy of BMW OF NORTH AMERICA, INC.
