51 46 050 Removing and installing/replacing top trim on tail panel

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

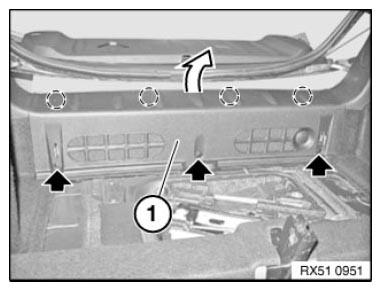

Lift out expansion rivets.

Unclip trim (1) in marked area.

Fig 1: Lifting Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips.

Pre-install clips in trim.

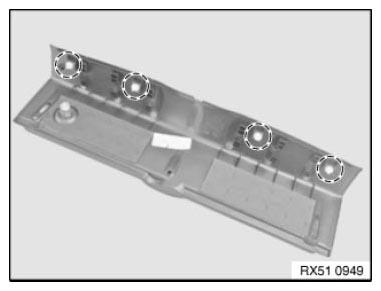

Fig 2: Identifying Clips On Trims

Courtesy of BMW OF NORTH AMERICA, INC.

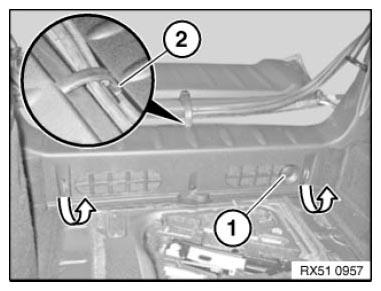

Feed out trim over lashing eyes on left and right.

If necessary, disconnect plug connection at 12V socket (1).

Pop cable grommet (2) out of trim.

Installation:

Make sure cable grommet (2) is correctly seated in trim.

Remove trim upwards.

Fig 3: Removing Trim Upwards

Courtesy of BMW OF NORTH AMERICA, INC.
