51 72 000 Removing and installing/replacing mucket for left or right front door

WARNING: This page is about a different variant/trim than selected.

NOTE: Refer to notes on fitting SEALS .

Pull off mucket (1) first at bottom from rabbet.

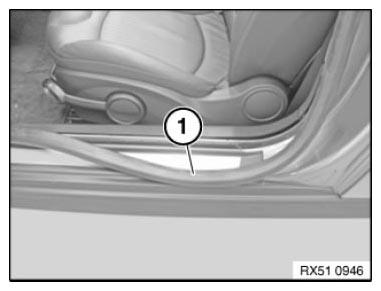

Fig 1: Identifying Mucket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed mucket (1) correctly into cowl panel seal.

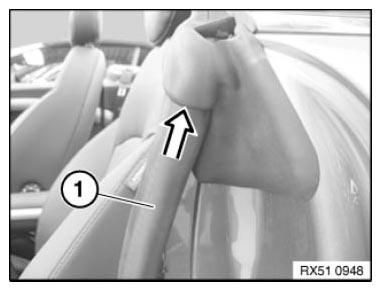

Fig 2: Installing Mucket Into Cowl Panel Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed mucket (1) correctly into window cavity seal.

Fig 3: Installing Mucket Into Window Cavity Seal

Courtesy of BMW OF NORTH AMERICA, INC.
