51 71 482 Removing and installing/replacing left or right tension strut (on rear axle)
WARNING: This page is about a different variant/trim than selected.
IMPORTANT:
Vehicles must not be driven without tension struts.
Driving without tension struts may damage the vehicle body.
Tension strut screws must be tightened to torque and then tightened down with special tool 00 9 120 .

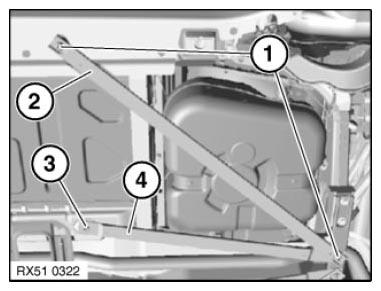

Release screws (1) and remove outer tension strut (2).
Release screw (3) and remove inner tension strut (4).
Installation:
Replace screws (1 and 3).
Tightening torque 51 71 2AZ .
