51 31... Removing windscreen with "Roll Out 2000": Notes

WARNING: This page is about a different variant/trim than selected.

Windscreen removal system "Roll Out 2000"

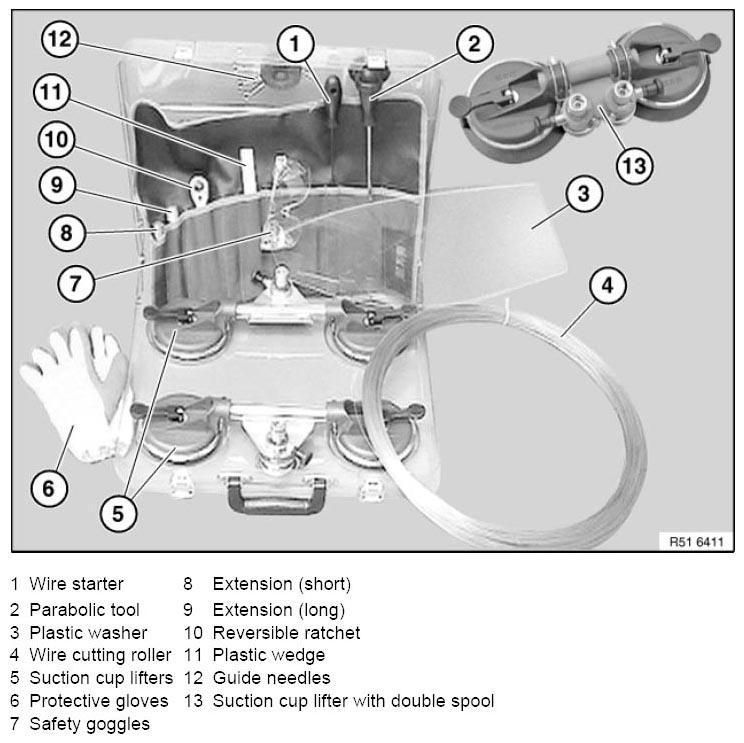

Fig 1: Identifying Windscreen Removal System Components - Roll Out 2000

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Both paint and ergonomic and health-endangering damage is minimized with the "Roll Out 2000" system.

IMPORTANT: Take care when handling sharp-edged tools and cutting wire (risk of damage to head airbag and window glass).

IMPORTANT: Always keep both suction cups dry and clean to ensure their optimum adhesion on the windscreen.

Lubricate spool if lock rattling becomes too loud.

Always wear safety goggles and protective gloves for your own safety.

Mounting suction cup lifters on windscreen or rear window:

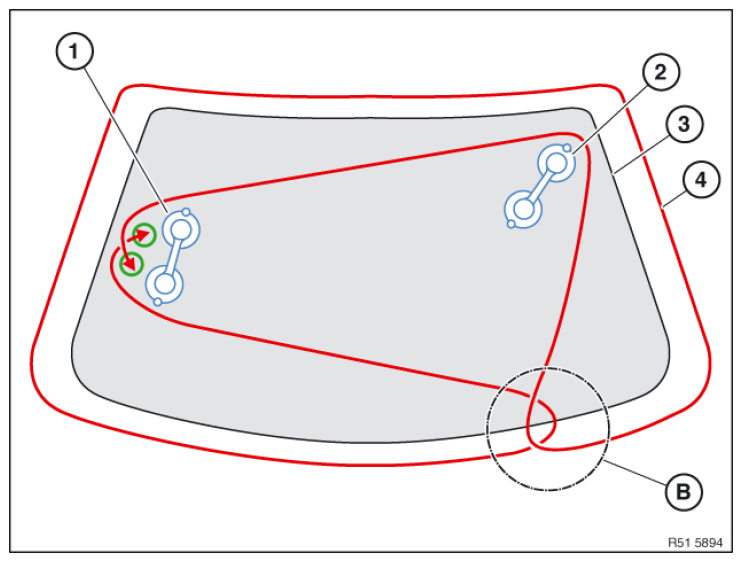

Fig 2: Mounting Suction Cup Lifters On Windscreen Or Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Mounting Suction Cup Lifters On Windscreen Or Rear Window

Courtesy of BMW OF NORTH AMERICA, INC.
