23 14 550 Removing/replacing zero-gear sensor

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: After installing the zero-gear sensor, it is necessary to teach in the position of the zero-gear sensor again.
Adjustment is carried out with the "Service function" of the DIS Tester (learn/write zero-gear sensor).

Undo bolt (1) and place coolant expansion tank (2) to one side.

(do not drain off coolant)

Fig 1: Identifying Coolant Expansion Tank With Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

View from below.

Disconnect plug connection (1) on zero-gear sensor.

Fig 2: Identifying Plug Connection On Zero-Gear Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove zero-gear sensor.

Tightening torque 23 14 2AZ .

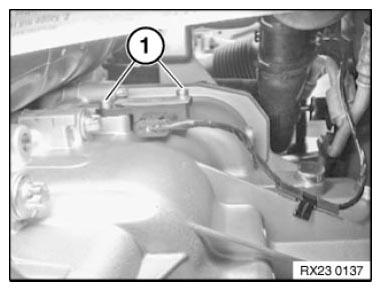

Fig 3: Identifying Zero-Gear Sensor Screws

Courtesy of BMW OF NORTH AMERICA, INC.
