23 12 506 Replacing the drive shaft radial shaft seal (GS6-85BG)

WARNING: This page is about a different variant/trim than selected.

NOTE: After completion of work, check transmission OIL LEVEL .
Use only the APPROVED TRANSMISSION OIL .
Failure to comply with this requirement will result in serious damage to the manual transmission!

Necessary preliminary tasks:

Remove transmission.
Remove clutch release bearing.

Release bolts (1) and remove guide tube (2).

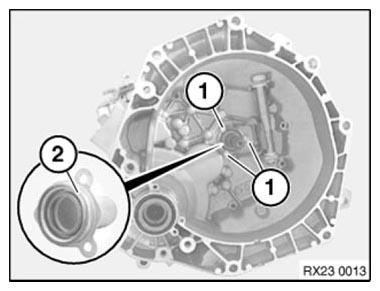

Fig 1: Identifying Guide Tube With Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The shaft seal and the guide tube are replaced together.

Installation note:

Wrap adhesive tape round keyway splines of drive shaft to avoid damaging the sealing ring while it is being installed.

Lubricate sealing lip of sealing ring.

Replace mounting bolts of guide bush.
