24 34... Notes on mechatronics (GA8HP45Z)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

24 2 390

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale fuel vapors.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT: After completing work:

Failure to comply with this requirement will result in serious damage to the automatic transmission!

IMPORTANT: Read and comply with notes on ESD PROTECTION .

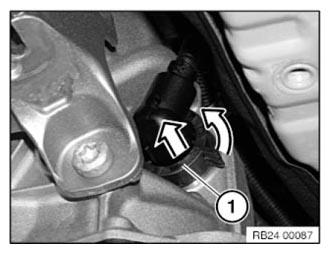

Unscrew connector (1) and disconnect.

Fig 1: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 24 2 390 in sealing sleeve (1).

Fig 2: Inserting Special Tool (24 2 390) In Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.
