41 11 513 Replacing cover for side member (partial replacement door pillar, front and rear side panels removed)

WARNING: This page is about a different variant/trim than selected.

Read contents of BODY, GENERAL .

Place vehicle on straightening bench.

Following new body parts are required:

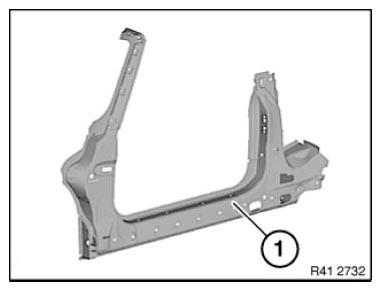

Fig 1: Identifying Outer Side Frame

Courtesy of BMW OF NORTH AMERICA, INC.

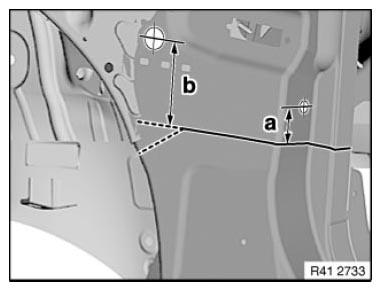

Mark cutting line in accordance with specified measurements.

Measurement a = 45 mm below center point of 12 mm dia. hole.

Measurement b = 105 mm below center point of 25 mm dia. hole.

Fig 2: Identifying Cutting Line Measurement

Courtesy of BMW OF NORTH AMERICA, INC.

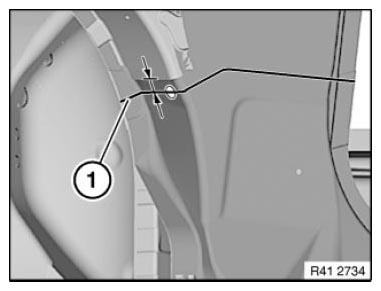

Mark and cut cutting line (1) centrally in 12 mm dia. hole.

Cut outer plate only for severance cut.

Fig 3: Identifying Outer Plate Cutting Line Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

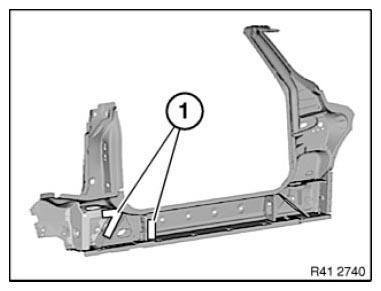

Fig 4: Identifying Welding Spots On Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Open welding spots in areas (1).

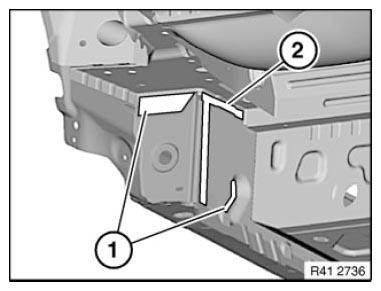

View from vehicle floorpan:

Open weld joints in areas (1) and (2).

Installation:

Spot-weld bonding is used in area (2). Observe specific procedure.

Fig 5: Identifying Welding Joints And Welding Spots On Areas

Courtesy of BMW OF NORTH AMERICA, INC.

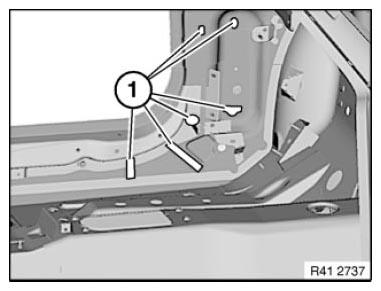

View from vehicle interior:

Open weld joints in areas (1).

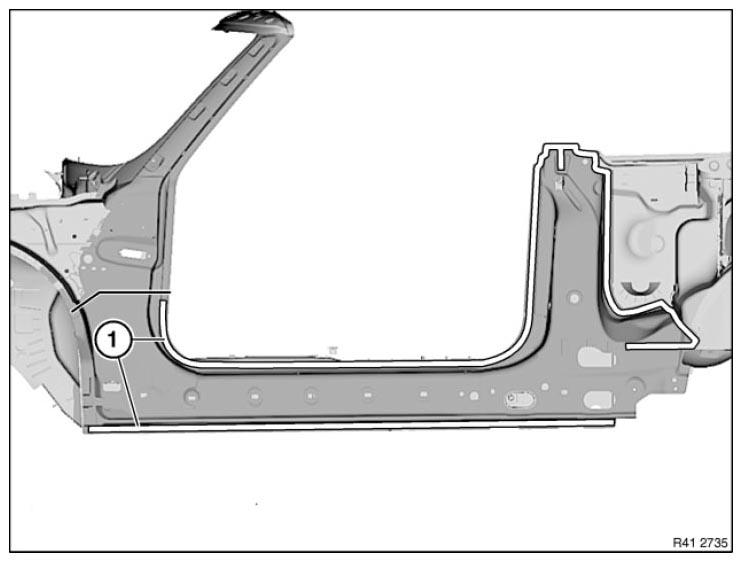

Fig 6: Identifying Weld Joints On Areas

Courtesy of BMW OF NORTH AMERICA, INC.

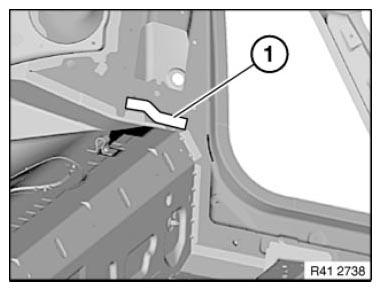

View from vehicle interior:

Open weld joints in area (1).

Fig 7: Identifying Weld Joints On Area

Courtesy of BMW OF NORTH AMERICA, INC.

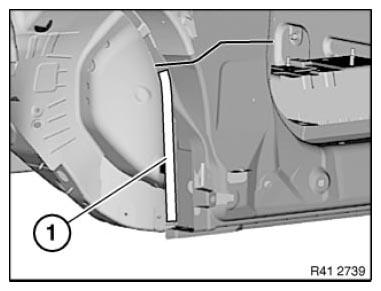

Open weld joints in area (1).

Fig 8: Identifying Weld Joints On Area

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part

Apply ADHESIVE in areas (1).

Installation:

Adjust new part to fit with straightening attachment or universal mount.

Fig 9: Identifying Adhesive On Areas

Courtesy of BMW OF NORTH AMERICA, INC.
