41 11 141 Replacing cover for left or right longitudinal member

WARNING: This page is about a different variant/trim than selected.

Read contents of BODY, GENERAL .

Following new body parts are required:

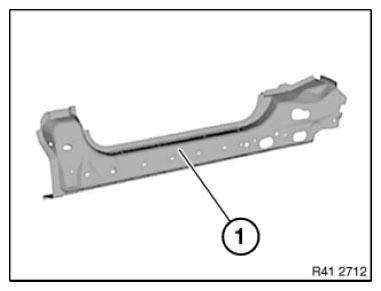

Fig 1: Identifying Outer Rocker Panel

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Cut through outer plate only for following severance cuts.

Mark severance cuts in accordance with illustration and cut.

Dimension a = approx. 35 mm before elongated hole dia. 12x18 mm.

Dimension b = approx. 25 mm before bore hole dia. 12 mm.

Open welding spots in areas (1).

Installation:

Weld in REINFORCING PANELS at all severance cuts.

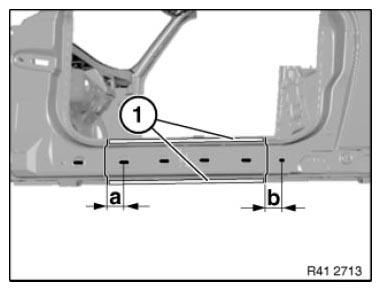

Fig 2: Welding Spots Area Dimension

Courtesy of BMW OF NORTH AMERICA, INC.
