41 34 060 Stripping operations - Replacing tail panel

WARNING: This page is about a different variant/trim than selected.

NOTE: Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.

The following list basically represents the removal sequence.

Remove complete exhaust system (FR number: 18 00020)
Remove heat shield for rear silencer
Remove bumper trim (FR number: 5112156)
Remove bumper carrier (FR number: 5112050)
Remove and install rear lid (FR number: 41 62000)
Remove luggage compartment floor trim panel (FR number: 5147101)
Upper tail panel trim (FR number: 5146050)
Remove and install left and right luggage compartment wheel arch panels (FR number: 5147151)
Release rear lid seal

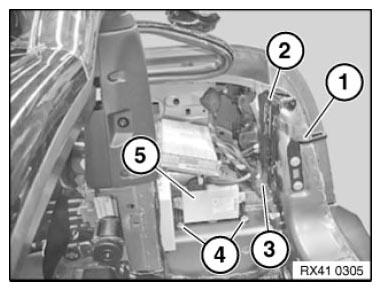

Remove rear lid lock (1).

Remove fastener bow (2).

Disconnect all plugs from wiring harness (3).

Release nuts (4).

Remove control unit (5).

Lay wiring harness (3) towards front.

Fig 1: Identifying Rear Lid Lock, Wiring Plugs, Harness And Control Unit Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release wiring harness (1) from tail panel.

Remove storage tray (2).

Fig 2: Identifying Storage Tray And Wiring Harness Of Tail Panel

Courtesy of BMW OF NORTH AMERICA, INC.

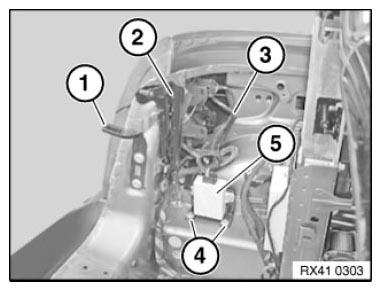

Remove rear lid lock (1).

Remove fastener bow (2).

Disconnect all plugs from wiring harness (3).

Release nuts (4).

Remove control unit (5).

Fig 3: Identifying Rear Lid Lock, Plugs Of Wiring Harness And Control Unit Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
