41 34 042 Stripping operations - Replacing tail panel outer section (partial replacement, center)
WARNING: This page is about a different variant/trim than selected.
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
- Remove bumper trim (FR flat rate number: 5112156)
- Remove bumper carrier (FR number: 5112050)
- Remove and install rear lid (FR number: 4162000)
- Remove luggage compartment floor trim panel (FR number: 5147101)
- Upper tail panel trim (FR number: 5146050)
- Release rear lid seal

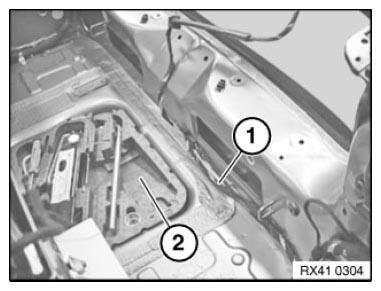

Release wiring harness (1) from tail panel and luggage compartment floor.
Remove storage tray (2).
