41 62 014 Adjusting rear lid to fit

Read contents of BODY, GENERAL .

Observe GAP DIMENSIONS .

The rear lid must be provided with all attachment parts for correct adjustment.

When door is closed, lock strikers must not make contact with or brush against rear lid locks. Look out for scratches.

Slacken lock striker, remove if necessary.

Slacken screws (1) until such stage that the rear lid can still be moved.

Adjust rear lid longitudinally.

Tightening torque 41 62 1AZ .

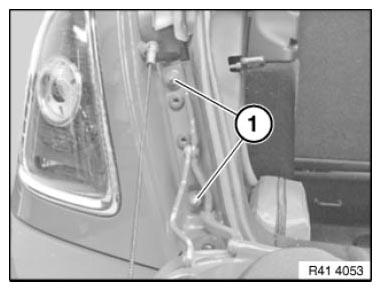

Fig 1: Identifying Rear Lid Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nuts (1) until such stage that the rear lid can still be moved.

Adjust rear lid sideways and vertically.

Tightening torque 41 62 3AZ .

Fig 2: Identifying Rear Lid Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

• Tighten all screws and nuts to specified torque.
• Touch up unpainted surfaces in the appropriate color.
• If necessary, adjust striker.
