41 12 535 Replacing complete rear luggage compartment floor (tail panel removed)

WARNING: This page is about a different variant/trim than selected.

Read contents of BODY, GENERAL .

Following new body parts are required:

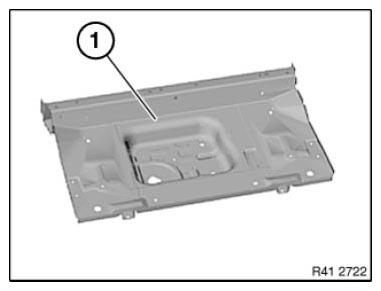

Fig 1: Identifying Luggage Compartment Floor

Courtesy of BMW OF NORTH AMERICA, INC.

Open welding spots in areas (1).

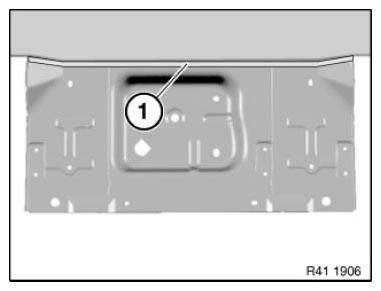

Fig 2: Identifying Welded Spots Area

Courtesy of BMW OF NORTH AMERICA, INC.

View from vehicle underbody:

Open welding spots in areas (1).

Remove the boot floor.

Fig 3: Identifying Welded Spots Area

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part

Open welding spots in area (1) and remove cross-member.

Fit in new part.

Fig 4: Identifying Welded Spots Area

Courtesy of BMW OF NORTH AMERICA, INC.
