36 12 084 Replacing sealant bottle of M-Mobility system: Installation

WARNING: This page is about a different variant/trim than selected.

Replace seal film.

Fig 1: Removing Seal Film

Courtesy of BMW OF NORTH AMERICA, INC.

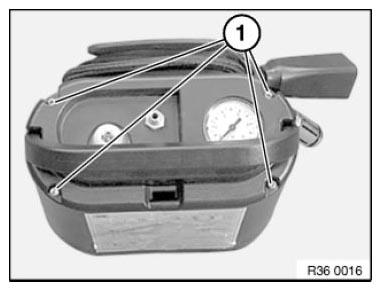

Release Torx threaded bolts (1) and raise cover as far as possible.

Fig 1: Identifying Torx Threaded Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Release hexagon nut (1), grip nut firmly from underside.

Fig 1: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Lift sealant bottle out.

Fig 2: Lift Sealant Bottle

Courtesy of BMW OF NORTH AMERICA, INC.

Ensure that hose is laid without any kinks.

Fig 3: Identifying Sealant Bottle With Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Note the expiration date when installing a new sealant bottle.

Fig 4: Identifying Sealant Bottle Expiration Date

Courtesy of BMW OF NORTH AMERICA, INC.
