Installing wheel electronics

WARNING: This page is about a different variant/trim than selected.

NOTE: The following images show the installation of generation 3 wheel electronics only. The instructions also apply without alteration to the 2nd generation wheel electronics.

Insert new square-head bolt (1) in wheel module (2).

Screw single-use valve insert (3) three turns onto square-head bolt (1).

NOTE: Make sure square bolt-head (1) is correctly seated in wheel module holder.

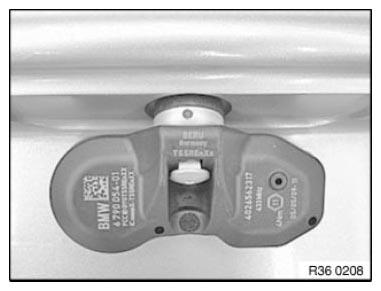

Fig 1: Identifying Square Head Bolt, Wheel Module And Single Use Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Insert valve insert with electronic wheel module into cleaned valve bore.

Both outer feet on the underside of the wheel module must be resting against the rim wall.

Fig 2: Identifying Valve Insert With Electronic Wheel Module Into Cleaned Valve Bore

Courtesy of BMW OF NORTH AMERICA, INC.

Screw on sleeve nut (1) by hand as far as it will go.

Tighten sleeve nut until the inner strip-off ring breaks. Breakage is perceptible audibly and tangibly (momentary drop in torque resistance).

Then fully tighten sleeve nut (1).

Tightening torque: 3.5 Nm

IMPORTANT: Fixing must not under any circumstances be retightened!
The square-head bolt should be located precisely in the wheel module holder.
The wheel module should still be resting evenly against the wheel after tightening.

Fig 3: Identifying Union Nut

Courtesy of BMW OF NORTH AMERICA, INC.
