36 11 105 Removing and installing RDC (Tire Pressure Control) control unit: Notes

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD protection).

Necessary preliminary tasks

Disconnect plug connection (1).

Press lugs in direction of arrow and remove control unit (2).

NOTE: Picture shows wheel arch cover removed.

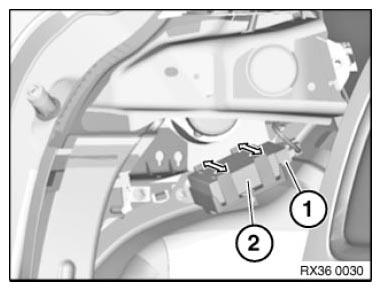

Fig 1: Pressing Tire Pressure Control Unit Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
