54 34... Topping up/extracting fluid, checking fluid level
WARNING: This page is about a different variant/trim than selected.
NOTE:
No changing of the hydraulic fluid necessary.
- The hydraulic fluid does not have to be changed because the system is filled with life-time fluid.
- Only the APPROVED HYDRAULIC FLUID may be used in the event of leaks.
- All hydraulic cylinders must be completely extended.
- The hydraulic system is automatically bled by repeated actuation.
Necessary preliminary tasks:
- Remove HYDRAULIC UNIT (hydraulic system closed)
IMPORTANT:
Protect components and work area with suitable materials (e.g. cloths).
Topping up fluid:
Align hydraulic unit vertically.

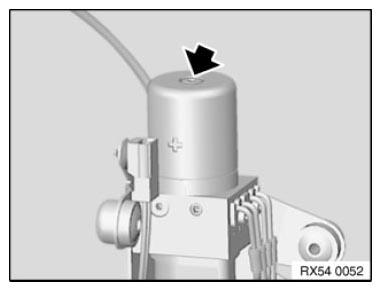

Open oil filler plug.
Pour in required amount of fluid from fluid bottle.
Installation:
Check fluid level in the meantime.
Extracting fluid:
Open oil filler plug.
Tilt hydraulic unit and let fluid flow out or draw off with a suitable auxiliary apparatus.
Checking fluid level:

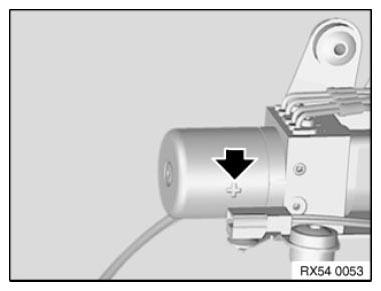

Fluid level must be within the markings (arrow) when the unit is horizontal.
