54 34... Overview, hydraulic components in soft top

WARNING: This page is about a different variant/trim than selected.

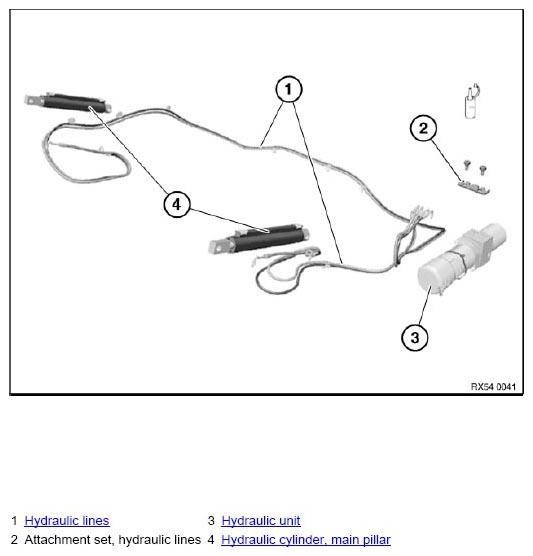

Fig 1: Identifying Soft Top Hydraulic Components
G06917644Courtesy of BMW OF NORTH AMERICA, INC.
