54 34... Overview of mechanical components of soft top

WARNING: This page is about a different variant/trim than selected.

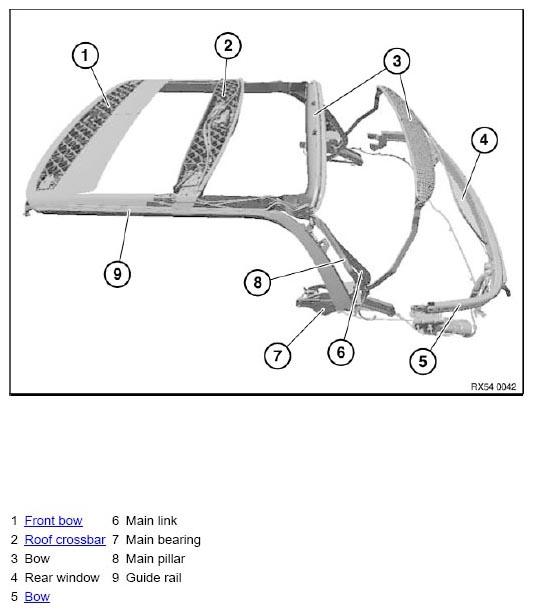

Fig 1: Identifying Soft Top Mechanical Components
G06917643Courtesy of BMW OF NORTH AMERICA, INC.
