Positioning removed soft top

WARNING: This page is about a different variant/trim than selected.

Mount soft top holders 54 3 180 on support tube 54 3 201 and fit on universal lifter 00 2 030 .

IMPORTANT: Use special tools only in conjunction with universal lifter 00 2 030 .

There is a risk of tilting over if other lifting equipment is used.

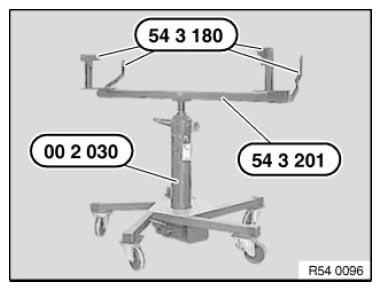

Fig 1: Identifying Special Tools (54 3 180, 00 2 030 And 54 3 201)

Courtesy of BMW OF NORTH AMERICA, INC.

Play soft top on both sides on threaded bolts and secure with original nuts.

If necessary, lay hydraulic unit on special tool rest.

IMPORTANT: Pay attention to cables and hydraulic lines when fitting soft top.

Cables/lines must not be trapped.

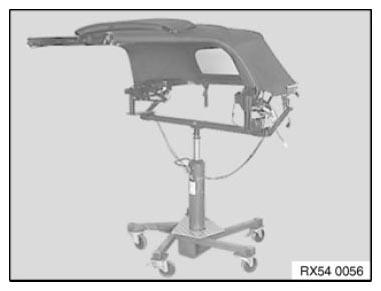

Fig 2: Identifying Soft Top On Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Closing soft top manually or electrically:

Always move the SOFT TOP MANUALLY with a 2nd person helping (risk of damage).

Make sure force is always exerted uniformly to the soft top sides otherwise the frame will be bent.

IMPORTANT: Avoid extended actuation of soft top against end points (overflow function of hydraulic system).

Do not carry out more than 10 operations in 1 hour (then allow to cool down for approx. 1 hour).

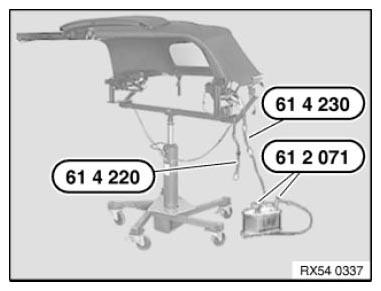

Fig 3: Checking Soft Top

Courtesy of BMW OF NORTH AMERICA, INC.

Connect adapter cable and lay to vehicle battery:

Folding sunroof and catch check: Connect power supply cable 61 2 071 and adapter cable 61 4 220 for activating soft top latch
Soft top check: Connect power supply cable 61 2 071 and adapter cable 61 4 230 for activating hydraulic pump
