54 34 365 Removing and installing front bow

WARNING: This page is about a different variant/trim than selected.

Open folding sunroof a few centimeters to relieve tension on soft top fabric.

Pull off trim (1) towards rear.

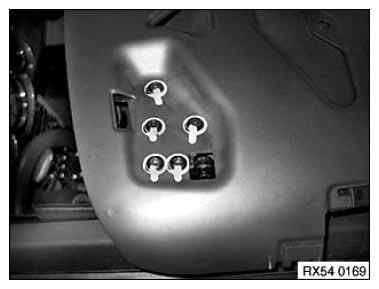

Fig 1: Pulling Off Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Detach soft top fabric (1) from front bow (2).

Installation:

Replace double-sided adhesive tape.

Fig 2: Detaching Soft Top Fabric

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip front plastic catches (1) in marked area.

If necessary, remove soft top fabric (2) from front bow (front) in direction of arrow.

Fig 3: Removing Soft Top Fabric

Courtesy of BMW OF NORTH AMERICA, INC.

Detach tension cable (1) at side from roof frame.

Installation:

Secure tension cable (1) to front bow with insulating tape.

Fig 4: Identifying Tension Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Mark screws (1).

Release left and right screws (1).

Remove front bow (2).

Installation:

Align front bow centrally and align to cowl panel seal with soft top closed.

Insert screws with Loctite.

Tightening torque 54 34 8AZ.

Fig 5: Identifying Front Bow And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting front bow:

Mark all screws.

Slacken screws.

Tightening torque 54 34 8AZ.

Align front bow centrally and align to cowl panel seal with soft top closed.

Installation:

Check for leaks. If necessary, repeat work steps.

Fig 6: Identifying Front Bow Screws

Courtesy of BMW OF NORTH AMERICA, INC.
