54 34 359 Removing and installing/replacing rear cover (rear soft top bow)

Necessary preliminary tasks:

• Open soft top half way

Carefully pull roofliner (1) to one side.

Release left and right screws (2).

Remove roofliner (1) from rear cover.

Fig 1: Identifying Roofliner And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screws (1).

Unclip cover (2).

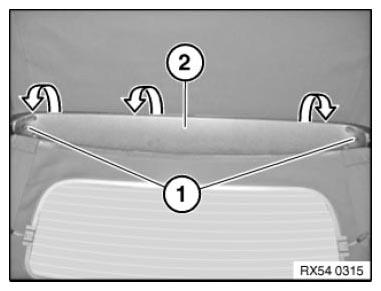

Fig 2: Unclipping Cover

Courtesy of BMW OF NORTH AMERICA, INC.
