54 34 355 Removing and installing/replacing left or right roof frame panel

WARNING: This page is about a different variant/trim than selected.

Pull roofliner to one side.

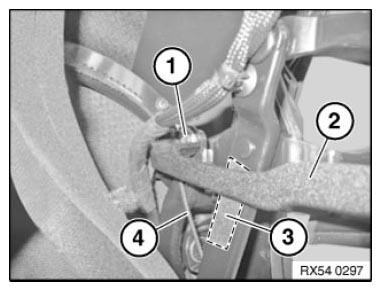

Release screw (1) on trim panel (2).

Remove clamp behind on tension cable (4).

Installation:

If necessary, retrofit felt (3) in order to avoid rattling noises.

Fig 1: Identifying Screw, Trim Panel And Tension Cable

Courtesy of BMW OF NORTH AMERICA, INC.

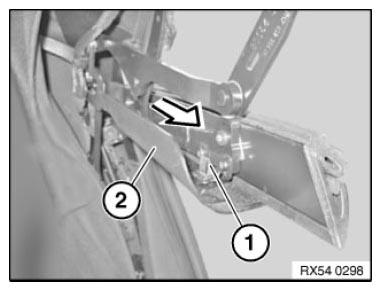

Slide trim panel (1) in direction of arrow and remove.

Catch (2) remains in guide.

Fig 2: Removing Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

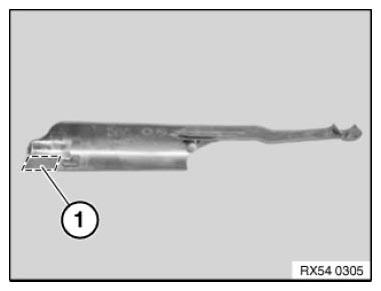

NOTE: If necessary, retrofit felt (1) in marked area.

Fig 3: Identifying Felt Area

Courtesy of BMW OF NORTH AMERICA, INC.
