54 34 343 Removing and installing/replacing rear left or right seal
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
- Open soft top approx. halfway
- Open side windows

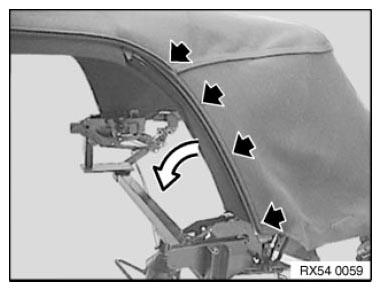

Fold seal (1) open and release screws behind.
Remove seal including carrier, starting from top.
Check function.
Side window must run into seal correctly and rest in seal over entire width.
If necessary, ADJUST SIDE WINDOW .
