54 34 192 Removing and installing/replacing stowage lock
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
Installation:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 min. (start of curing)
- Microencapsulated screws must not be retightened
- Thread of nut must be cleaned beforehand in event of repeated use

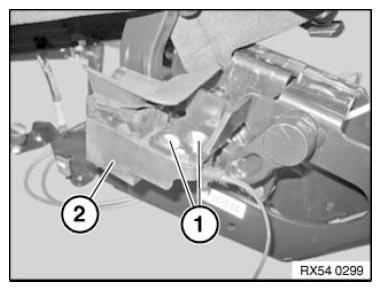

Release screws (1).
Remove stowage lock (2) from holder.
