54 34 170 Removing and installing/replacing left or right retaining hook (centering tip)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Release screws (1).

NOTE: Insert screws with Loctite.

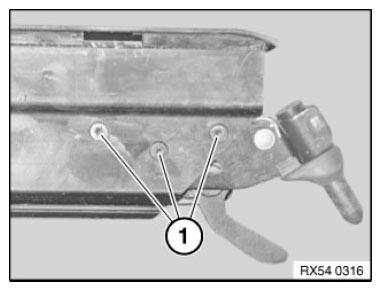

Fig 1: Identifying Retaining Hook Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

NOTE: Insert screw with Loctite.

Feed out centering tip (2).

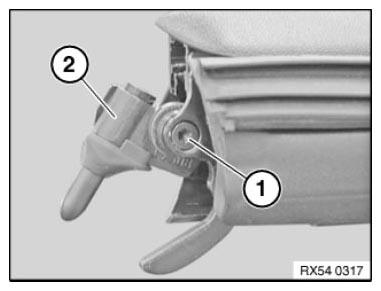

Fig 2: Identifying Centering Tip And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Detach sleeve (1) from centering tip (2).

Turn centering tip (2) downwards to relieve tension on spring.

Remove centering tip (2) in direction of arrow in inward direction.

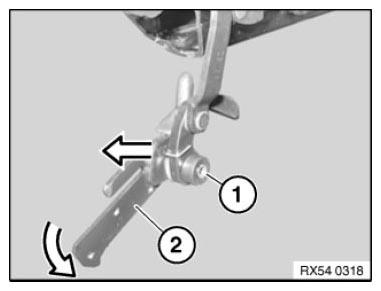

Fig 3: Removing Centering Tip

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Carry out FUNCTION CHECK .
