Removing bow bearing

Before removing tension bar bearing, mark position of bearing in relation to body.

When installing, align bearing to markings.

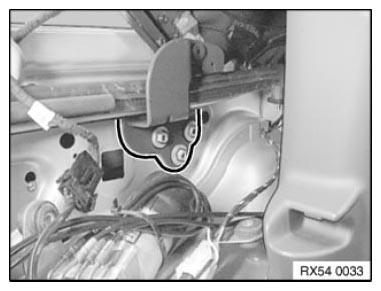

Fig 1: Identifying Bearing Position

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts.

Tightening torque 54 34 4AZ .

Installation:

Check GAP DIMENSIONS .

If necessary, adjust spacing for soft top LONGITUDINAL AND VERTICAL ALIGNMENT .

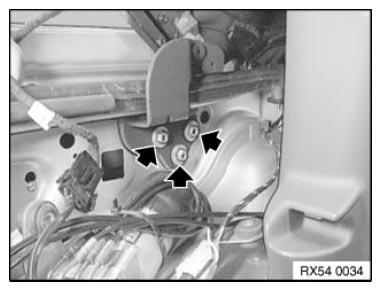

Fig 2: Locating Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
