54 34 034 Removing and installing/replacing complete hydraulic system for soft top

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: Hydraulic circuit remains closed during this operation.

Do not kink or crush hydraulic lines.

Overview of hydraulic system:

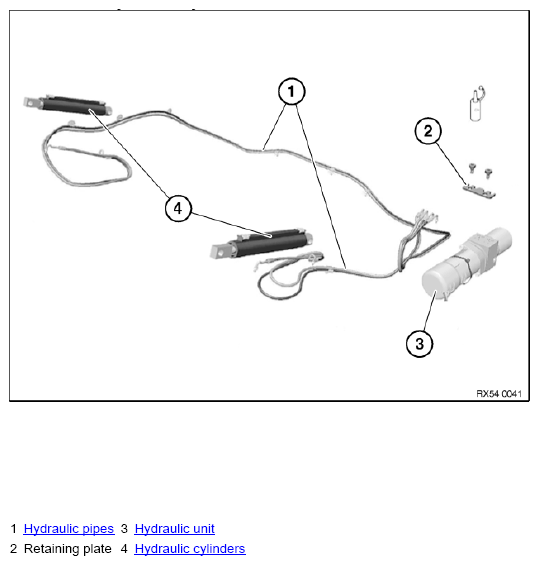

Fig 1: Identifying Soft Top Hydraulic Components

Courtesy of BMW OF NORTH AMERICA, INC.
