12 13 511 Replacing ignition coils (N12, N16)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary work:

Release bolts and remove cover (1).

Fig 1: Locating Cover Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector fastener (1) of ignition coil (2) and disconnect connector.

Pull ignition coil (2) up and out.

This procedure is applicable to all ignition coils.

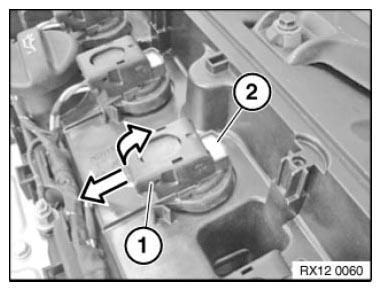

Fig 2: Removing Connector Fastener Of Ignition Coil

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check that rubber seal of ignition coil (1) is correctly seated.

Fig 3: Locating Rubber Seal Of Ignition Coil

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Push connector (1) with connector fastener (2) open onto ignition coil.

Carefully close connector fastener (2) in direction of arrow.

The connector fastener must snap into place without great effort.

Fig 4: Closing Connector Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Delete fault memory.
