64 11 992 Removing and installing or replacing solar sensor

WARNING: This page is about a different variant/trim than selected.

Lever off trim (1) with a suitable tool.

Installation:

Make sure trim (1) is correctly seated.

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Tape off work area around solar sensor (1) (risk of damage).

Lever out solar sensor (1) with a suitable object.

Fig 2: Identifying Solar Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Firmly pull solar sensor (1) upwards to release binding (adhesive tape inside instrument panel).

Feed plug connection (2) out of instrument panel and disconnect.

Installation:

Wrap adhesive tape round plug connection to prevent rattling noises.

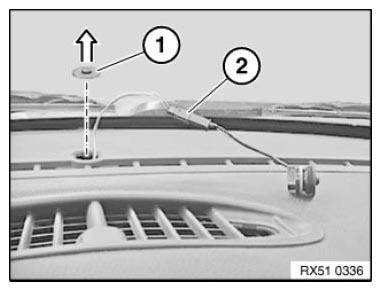

Fig 3: Removing Solar Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
