64 11 855 Removing and installing/replacing servodrive for central kinematics

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks

Disconnect plug connection (1).

Release screws (2) and remove servodrive (3).

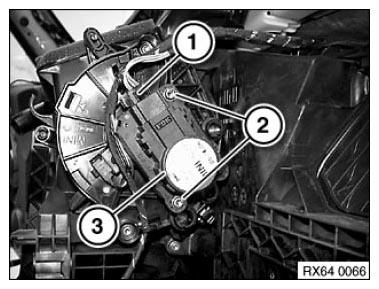

Fig 1: Identifying Central Kinematics Servodrive With Plug Connection And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
