64 11 221 Replacing resistor for heating and air conditioning unit blower (IHR/IHKR)

WARNING: This page is about a different variant/trim than selected.

Release screws (1) and feed out cover (2) towards bottom.

Fig 1: Identifying Heating And Air Conditioning Unit Blower Cover With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

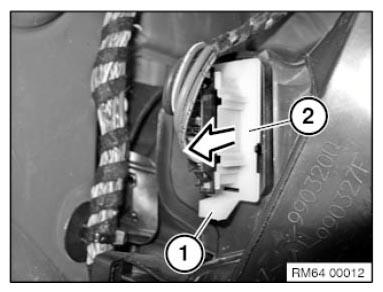

Unlock retaining lug (1).

Pull the resistor (2) in direction of arrow out of the guide.

Fig 2: Removing Heating And Air Conditioning Unit Blower Resistor

Courtesy of BMW OF NORTH AMERICA, INC.

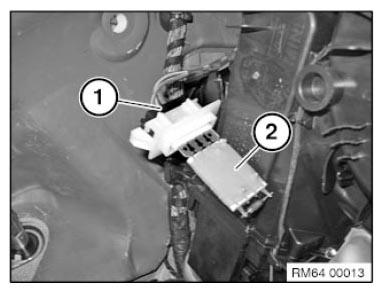

Unfasten plug connection (1) and disconnect.

Take off resistor (2).

Fig 3: Identifying Heating And Air Conditioning Unit Blower Resistor With Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
