23 00... Overview of transmission housing (GS6-53BG/DG/55BG)

WARNING: This page is about a different variant/trim than selected.

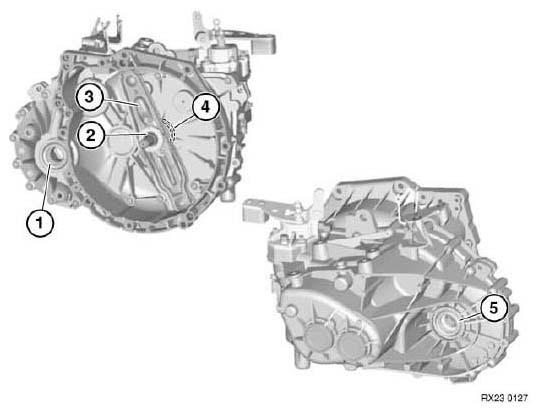

Fig 1: Overview Of Transmission Housing (GS6-53BG/DG/55BG)
G04796606Courtesy of BMW OF NORTH AMERICA, INC.
  1. Radial shaft seal, right
  2. Guide tube
  3. Clutch operator
  4. Radial shaft seal, drive shaft
  5. Radial shaft seal, left
