34 41 001 Removing and installing handbrake lever

Necessary preliminary tasks

• REMOVE REAR STORAGE COMPARTMENT HOLDER

After completing tasks, ADJUST HANDBRAKE .

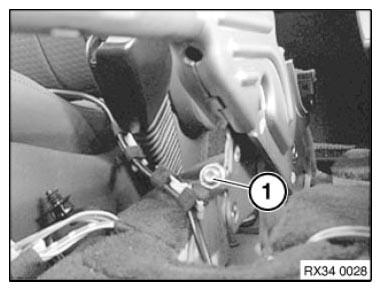

Release adjustment unit (1) for handbrake lever.

Fig 1: Identifying Adjustment Unit Of Handbrake Lever

Courtesy of BMW OF NORTH AMERICA, INC.

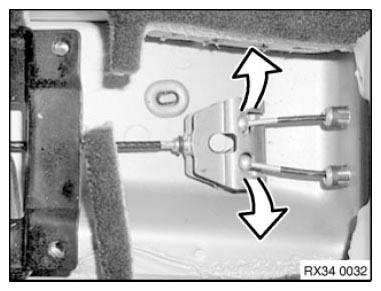

Detach both parking brake Bowden cables from balance arm.

Fig 2: Removing Parking Brake Bowden Cables From Balance Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection for handbrake check switch.

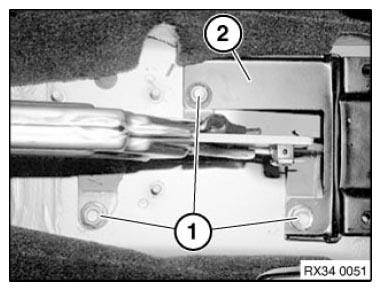

Release screws (1) and remove fastener (2).

Installation:

Tightening torque 34 41 1AZ .

Fig 3: Identifying Screws And Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

Remove handbrake lever.
