34 52 550 Removing and installing/replacing DSC yaw sensor (DSC sensor)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks

Disconnect plug connection (1).

IMPORTANT: Vibration-sensitive component.
Implement screw connection correctly, otherwise there may be malfunctions in the DSC.

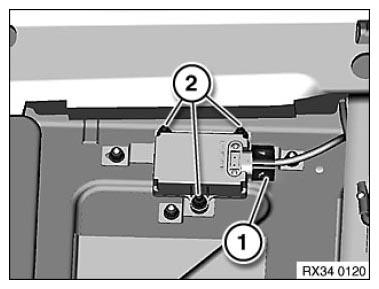

Fig 1: Identifying DSC Sensor Nuts And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (2) and remove DSC sensor.

Installation

Tightening torque 34 51 5AZ .
