34 33 071 Replacing Vacuum Hose For Brake Booster (N14)
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
- Remove INTAKE SILENCER HOUSING .
- Remove LEFT COWL PANEL COVER
Before beginning work, fully press the brake pedal several times to reduce the vacuum pressure in the brake booster. This makes it easier to detach the vacuum hose.

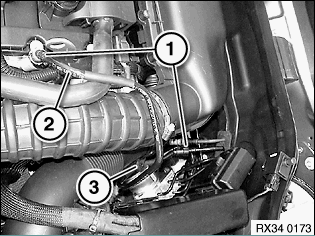

Disconnect quick-connect couplings (1).
Unclip vacuum line (2) from holder (3).
