22 31 001 Replacing rubber mount for transmission mounting

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Detach selector lever cable at ball joint (1).

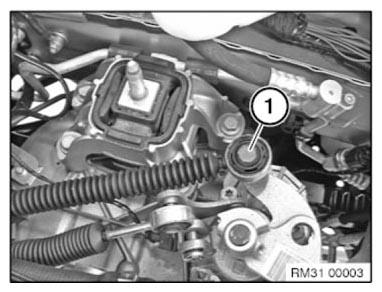

Fig 1: Identifying Ball Joint Of Selector Lever Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 22 32 1AZ .

Fig 2: Identifying Ball Joint Screws

Courtesy of BMW OF NORTH AMERICA, INC.
