11 13 000 Removing and installing, sealing or replacing oil sump (N14)

Necessary preliminary tasks:

• Drain ENGINE OIL .

Release oil sump bolts in area of line (1).

Tightening torque: 11 13 2AZ. .

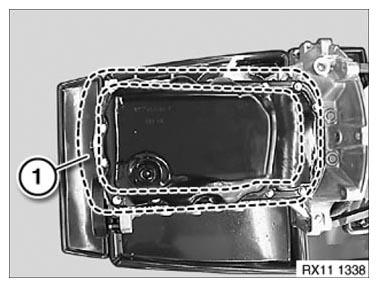

Fig 1: Identifying Oil Sump Bolts Area Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) over exhaust manifold with special tools 11 9 582 and 11 9 581.

Fig 2: Removing Exhaust Manifold Screw Using Special Tools (11 9 582 And 11 9 581)

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing face (1) with special tool 11 4 470.

Fig 3: Identifying Sealing Face

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protruding or sticking-out sealing beads (1) with a sharp knife.

Installation:

Do not use liquid seal.

A metal substrate gasket is available for repairs.

Fig 4: Identifying Sticking-Out Sealing Beads

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
