11 12 000 Removing and installing/sealing cylinder head cover (N14)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Unclip ignition wiring harness on cylinder head.
Remove ROD-TYPE IGNITION COILS .
Remove SUCTION FILTER HOUSING .

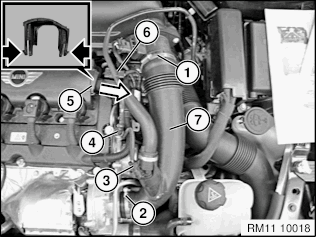

Release clamps (1 and 2). Unlock connector (3) and remove. Unlock and detach vacuum line (4). Push the lock (5) of the vent hose together on the side (see graphic) and pull off toward the top. Pull the vent hose off the cylinder head cover in the direction of the arrow. Remove the vent hose with gaiter (7). Release connector (6) and remove.

Installation note: Install gaiter (7) dry and free from grease.

Fig 1: Detaching Vacuum Line And Removing Vent Hose With Gaiter

G00532999

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip engine wiring harness with holders (1).

Fig 2: Identifying Engine Wiring Harness Holders

G05528157

Courtesy of BMW OF NORTH AMERICA, INC.

Release oxygen sensors on cylinder head (1).

Fig 3: Identifying Cylinder Head

G04789685

Courtesy of BMW OF NORTH AMERICA, INC.

Detach earth cable at bolt connection (2).

Undo cylinder head cover bolts in the sequence 13 to 1.

Fig 4: Cylinder Head Cover Bolts Removing Order

G04789686

Courtesy of BMW OF NORTH AMERICA, INC.

Replace gasket (1).

Replace all gaskets (2).

Installation:

Clean all sealing surfaces.

Installation:

Seal all edges and joints on the cylinder head with sealing compound Drei Bond 1209.

NOTE: Pictures show N12.

Fig 5: Identifying Seals

G04796152

Courtesy of BMW OF NORTH AMERICA, INC.

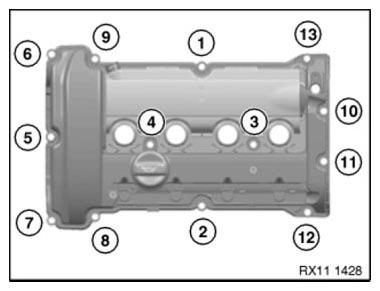

Secure bolts for cylinder head cover in sequence 1 to 13.

Tightening torque: 11 12 4AZ. .

Fig 6: Cylinder Head Cover Bolts Installing Sequence

G06907117

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
