11 25 671 Replacing piston rings on all pistons (N12)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Necessary preliminary tasks:

Measuring axial clearance of piston rings in piston ring groove.

Technical Data.

NOTE: It is not possible to measure the axial clearance of the oil scraper rings.
Fig 1: Measuring Axial Clearance Of Piston Rings
G04207369Courtesy of BMW OF NORTH AMERICA, INC.

Remove compression ring and stepped ring upwards with piston ring pliers.

Oil scraper ring comprises two steel band rings and a support spring.

NOTE: Oil scraper ring cannot be removed with piston ring pliers.
Put aside piston rings in correct sequence and installation position.
It might not be possible to find the identification on used piston rings.
Fig 2: Removing Piston Rings
G05515564Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

New pistons may only be installed together with new piston rings.

Determine gap with a feeler gauge.

Fig 3: Checking Ring Gap
G04207370Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Piston rings with "TOP" identification must point to piston crown.

Fig 4: Identifying Piston Rings With "TOP" Identification Mark
G05515566Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Piston rings with "TOP" identification must point to piston crown.

IMPORTANT: Contact point on oil scraper ring (3) can overlap - risk of damage!  - during installation in cylinder.

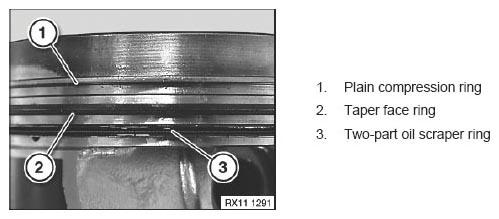

Fig 5: Identifying Piston Rings
G05515567Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The oil control ring comprises a steel band ring (1) and a support spring (2).

Installation:

Insert support spring (2) in piston ring groove and then fit steel band ring (1) so that end faces point to each other.

Fig 6: Identifying Steel Band Ring And Support Spring
G04725493Courtesy of BMW OF NORTH AMERICA, INC.

Offset the contact points (1) of the piston rings by approx. 120° to each other but do not position above the piston pin boss.

Coat special tool 11 9 670 with sufficient engine oil. Risk of damage  to piston rings!

NOTE: See illustration.
Fig 7: Identifying Piston Head
G05515569Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
