133060 Device MW

WARNING: This page is about a different variant/trim than selected.

NOTE: For checking fuel pressure and oil pressure

Consisting of:

1 = 0491260 Pressure gauge

NOTE: (Pressure gauge 0...25 bar)

2 = 0491261 Valve

NOTE: (Valve) 2-way valve, engine: all except S50, S54, N73

3 = 0491262 Lines

NOTE: (Connection lines (2 x)) For check of fuel and oil pressure

4 = 0491263 Lines

NOTE: (Connection line) With T-piece for L-Jetronic, all except N73

5 = 0491264 Connection piece

NOTE: (Connection piece, distributor) All except N73

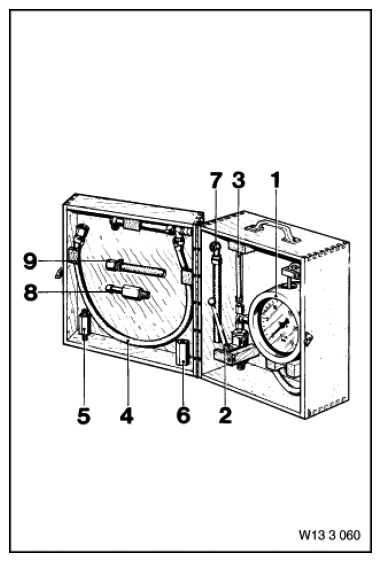

Fig 1: Identifying Device (133060)

Courtesy of BMW OF NORTH AMERICA, INC.

6 = 0491265 Connection piece

NOTE: (Connection piece warm-up sensor) All except N73

7 = 0491266 Hose

NOTE: (Connecting hose) For checking fuel pump fuel delivery rate, all except N73

8 = 0491267 Connection piece

NOTE: (Connection piece, distributor) All except N73

9 = 0491268 Connection piece

NOTE: For warm-up sensor with hose, all except N73
