SI number

WARNING: This page is about a different variant/trim than selected.

01 12 93 (701)

Consisting of:

3 = 0490649 Hook

NOTE: (hook) Length 220 mm - Engine: all, except M10 Replaced by 11 9 000 (0 494 362)

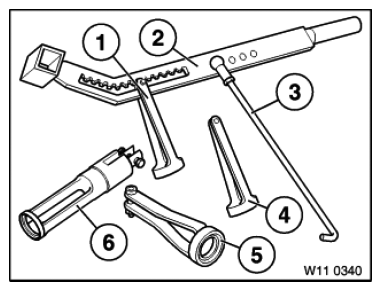

Fig 1: Identifying Fitting Aid (110340)

Courtesy of BMW OF NORTH AMERICA, INC.

5 = 0490651 Cage

NOTE: (Valve spring cage) Engine: M44, M52, M62, S62, S54 Replaced by 11 9 000 (0 494 362)

1 = 0490647 Cage

NOTE: (Valve spring cage) Engine: M43, M73

2 = 0490648 Lever

NOTE: (compression lever) Engine: all, except M10

6 = 0493285 Cage

NOTE: (Valve spring cage) Engine: M47, M47TU, M57, N40, N42, M67, M67TU

4 = 0490650 Cage

NOTE: (valve spring cage) Replaced by 11 0345, engine: M52
