65 77... Overview of sensors for airbag system

WARNING: This page is about a different variant/trim than selected.

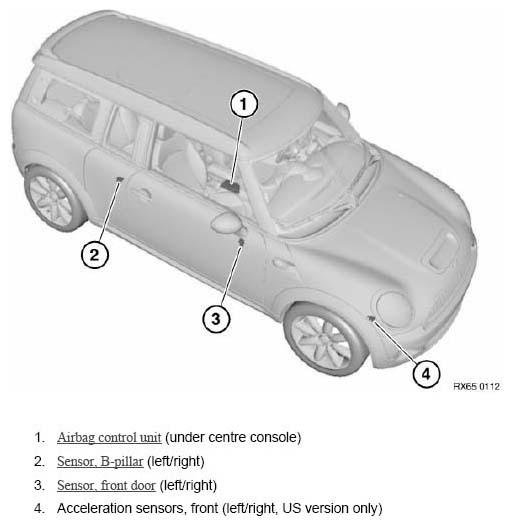

Fig 1: Identifying Sensors For Airbag System Components
G05530467Courtesy of BMW OF NORTH AMERICA, INC.
  1. Airbag control unit (under center console)
  2. Sensor, B-pillar (left/right)
  3. Sensor, front door (left/right, US version only)
  4. Acceleration sensors, front (left/right, US version only)
